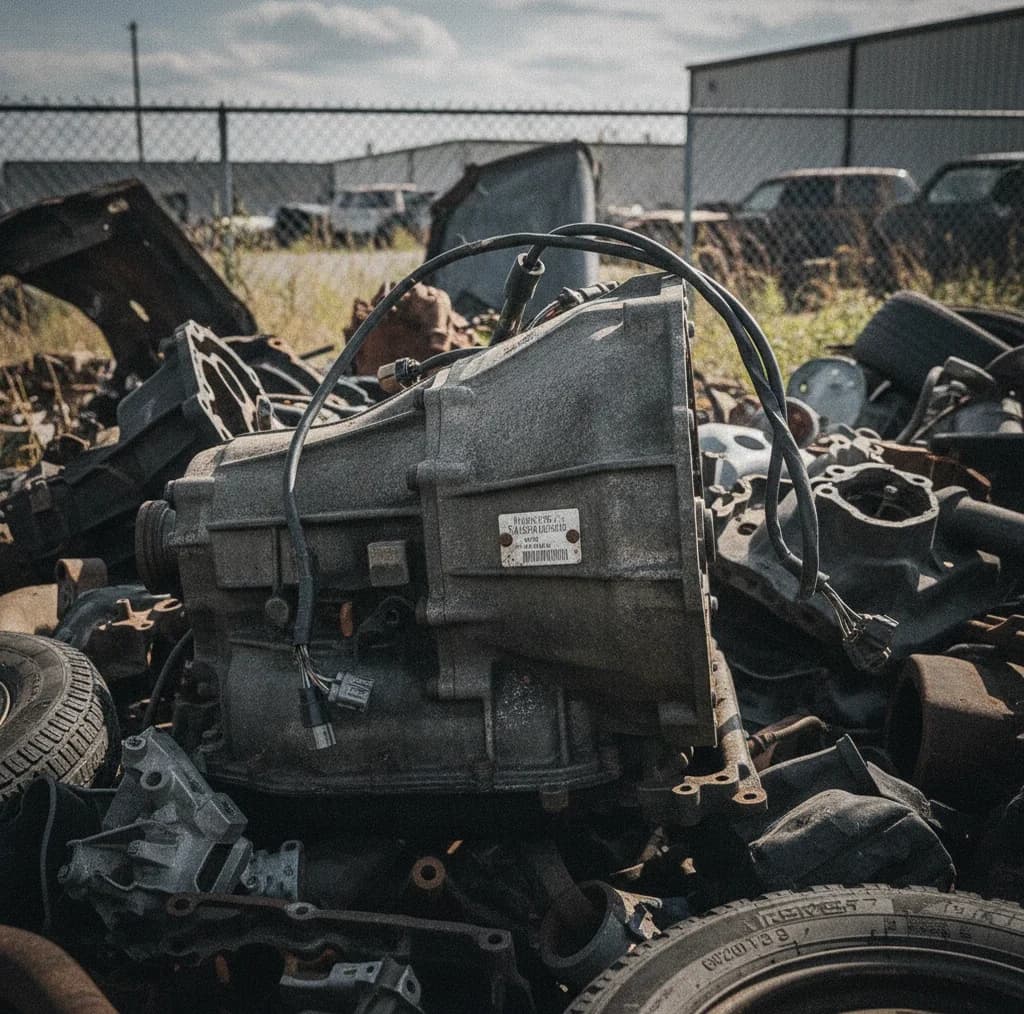

Silverado Transmission Interchange: 4L60E, 6L80, 8L90, 10L80

Identify what you have

Model year is not enough on these trucks. GM ran multiple transmissions concurrently depending on engine, cab, and payload rating. The RPO code sticker, usually in the glovebox or on the driver door jamb, is the answer.

What has to match

• Bellhousing pattern. GM small-block and LS share a pattern; the 8.1 big block and Duramax do not.
• Input shaft spline count. Differs between the 4L60E and 4L80E families and between torque converter variants.
• 2WD or 4WD tail housing. A 4WD unit has a short adapter for the transfer case, a 2WD unit a long tail with a slip yoke. Swapping means changing the housing and output shaft.
• Electrical connector. The 4L60E used a different connector before and after 2003. Physically different, not adaptable.
• Torque converter. Match stall and lockup type to the transmission and engine.
• Crossmember mount position, which moved between generations.

The 4L60E, and its two eras

This is the most swapped GM automatic and the most forgiving, with one dividing line. The 1993-2002 units use one case connector and the 2003 and later units another. Within each group, interchange across Silverado, Sierra, Tahoe, Suburban, Yukon, Escalade, and Express is broadly workable if the drivetrain and bellhousing match.

The 4L65E is the heavier-duty variant with a five-pinion planetary, fitted behind the 6.0 and in higher-load applications. It swaps into 4L60E applications directly and is a mild upgrade.

Used pricing at a self-service yard runs $300-$600. These are plentiful, which is the main reason people keep older trucks on the road cheaply.

The 4L80E

Substantially stronger, noticeably heavier, and physically longer than a 4L60E. It is the standard swap for anyone towing seriously or making real power. It is not a bolt-in replacement for a 4L60E: the case is longer, the crossmember has to move, the driveshaft needs shortening, and the wiring and controller strategy differ.

Worth doing when the truck works hard. Not worth doing to fix a failed 4L60E in a stock truck.

Six, eight, and ten speeds

From the 6L80 onward, the transmission carries its own control module bolted to the valve body, and that changes the used-parts picture.

• The module stores adaptive learning from the donor truck, which will feel wrong in yours until it relearns or is reset.
• Many store the VIN, and a mismatch sets codes until it is reprogrammed.
• Calibration differs by axle ratio and engine, so a 5.3 unit behind a 6.2 shifts at the wrong points.
• Some later units are effectively dealer-programmed, which changes the economics of a yard pull.

The practical approach: match the donor's engine and axle ratio as closely as you can, take the module with the transmission, and budget for a shop with a scan tool to perform the relearn. Skipping that produces harsh shifting that people mistake for a bad transmission.

The 8L90 in particular developed a reputation for shudder in early production, largely traced to torque converter and fluid issues. If you are buying a used one, prefer a later build and use the current fluid specification.

Buying at the yard

• Photograph your RPO sticker before you leave home and match it.
• Check fluid on the donor: bright red good, dark and burnt walk away, metal flakes walk away.
• Confirm the tail housing matches your drivetrain before spending three hours pulling it.
• Take the torque converter, crossmember, dust cover, and every bolt.
• Take the wiring pigtail if it disconnects, especially on a 2003 connector-change swap.
• Buy the warranty extension. You cannot test a transmission until it is in the truck.
